Introduction to Local Functions

Max Anjos

March 25, 2026

The Local functions of LCZ4r are specialized tools designed to analyze large datasets, such as hourly air temperature readings. This tutorial focuses on using data from Berlin, collected across 23 meteorological stations as part of the Urban Climate Observatory (UCO).

Overview

The Local functions in LCZ4r, offer powerful tools to handle and analyze urban climate data. They enable time-series analysis, mapping of thermal anomalies, spatial interpolation, and more. Below is a summary of these functions:

Function	Description	Data Required	Internet Access Required
lcz_ts()	Analyze LCZ Time Series	Yes	Not needed
lcz_anomaly()	Calculate LCZ Thermal Anomalies	Yes	Not needed
lcz_anomaly_map()	Map LCZ Thermal Anomalies	Yes	Not needed
lcz_interp_map()	Perform LCZ Interpolation	Yes	Not needed
lcz_plot_interp()	Visualize LCZ Interpolation	Yes	Not needed
lcz_interp_eval()	Evaluate LCZ Interpolation	Yes	Not needed
lcz_uhi_intensity()	Assess LCZ for Urban Heat Island Intensity	Yes	Not needed

💡 Tips:

1. Utilize the help(lcz_*) function to access detailed documentation for each LCZ4r function. For example, to learn about the lcz_ts function, type help("lcz_ts") in the console.

2. Each LCZ4r function supports imputation for handling missing values within data frames. For more information on imputation methods, refer to the “impute” argument in the documentation of each function.

Data input requirements

To ensure smooth operation of the local functions, input data should be structured as a data frame with the following columns:

1. date: This column should contain date-time information. This column must be labeled as “date”, “time”, “timestamp” or “datetime”. Ensure that the date-time format aligns with R’s conventions (e.g., YYYY-MM-DD HH:MM:SS). Acceptable formats include “1999-02-01”. For more details, see format dates and times in the openair packR.

2. Station Identifier: A column for identifying meteorological stations.

3. Air Temperature or other variable: At least one column representing the air temperature or any other target variable.

4. Latitude and Longitude: Two columns for the geographical coordinates of each station. Ensure the column is named “lat” or “latitude” and “lon”, “long” or “longitude”.

To simplify this setup, LCZ4r provides a sample data frame, which you can load with the following command:

library(LCZ4r)

# Load data from LCZ4r package
data("lcz_data")

# Check data structure
str(lcz_data)

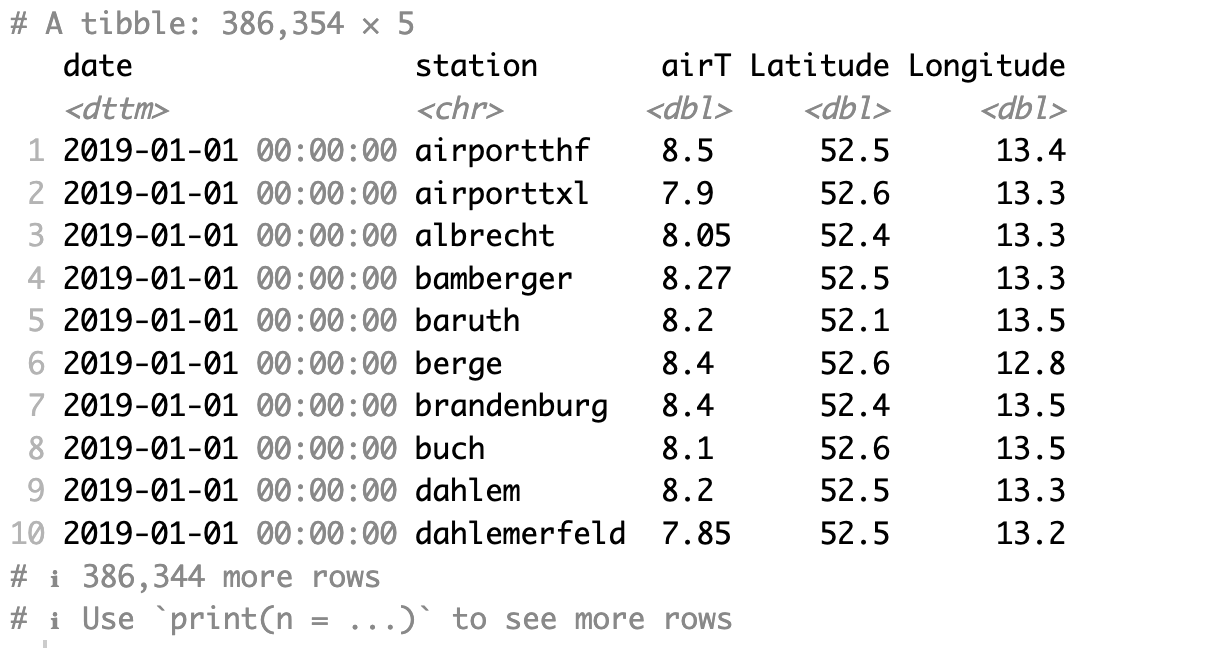

Structure of the LCZ sample dataset showing date, station, temperature, and coordinates columns

Import your data

if(!require(data.table)) install.packages("data.table")

# Replace the path with the actual path to your CSV file
my_data <- data.table::fread("PC/path/file_name.csv")

head(my_data)

Customizing Local Functions in LCZ4r

You can further customize the Local Functions to suit specific analysis needs:

1. Flexibility time selection

The Local Functions have an argument ... that provides options to filter data by specific years, months, days, and hours to narrow down your analysis period. Examples of how to use these arguments include:

• Year(s): Numeric value(s) specifying the year(s) to select. For example, year = 1998:2004 selects all years between 1998 and 2004 (inclusive), while year = c(1998, 2004) selects only the years 1998 and 2004.

• Month(s): Numeric or character value(s) specifying the months to select. Numeric examples: month = 1:6 (January to June), or character examples: month = c("January", "December").

• Day(s): Numeric value(s) specifying the days to select. For instance, day = 1:30 selects days from 1 to 30, or day = 15 selects only the 15th day of the month.

• Hour(s): Numeric value(s) specifying the hours to select. For example, hour = 0:23 selects all hours in a day, while hour = 9 selects only the 9th hour.

• Start date: A string specifying the start date in either start = "DD/MM/YYYY" (e.g., “1/2/1999”) or “YYYY-mm-dd” format (e.g., “1999-02-01”).

• End date: A string specifying the end date in either end = "DD/MM/YYYY" (e.g., “1/2/1999”) or “YYYY-mm-dd” format (e.g., “1999-02-01”).

Examples

# Select a range of years (e.g., 1998:2004) or specific years (e.g., c(1998, 2004))
lcz_ts(
  lcz_map,
  year = 1998:2004
)

# Filter by month, either by numeric values (e.g., 1:6 for January to June) or by names
lcz_anomaly(
  lcz_map,
  year = 2012, month = 9
)

# Pinpoint a specific date, such as September 1, 2019
lcz_interp_map(
  lcz_map,
  year = 2012, month = 9, day = 1
)

# For a specific hour
lcz_anomaly_map(
  lcz_map,
  year = 2012, month = 9, day = 1, hour = 5
)

# Pinpoint a specific period using start and end dates
lcz_uhi_intensity(
  lcz_map,
  var = "airT",
  station_id = "station",
  start = "1/9/2019", end = "30/10/2019"
)

For more information, see the utility functions from the openair package.

2. Splitting LCZ time series by temporal window or site

You can segment the LCZ time series data using the by argument, allowing for analysis across different temporal windows or sites. Available split options include:

1. Temporal segments: “year”, “season”, “seasonyear”, “month”, “monthyear”, “weekday”, “weekend”.

2. Daylight split: “daylight”, which divides data into daytime and nighttime periods. Note that the Daylight option may result in both daytime and nighttime hours being represented in UTC. See NOAA and argument type in openair package.

3. Combinations: You can also use combinations like c("daylight", "month") or c("daylight", "season").

# Split by month
lcz_ts(lcz_map, by = "month")

# Split by season
lcz_ts(lcz_map, by = "season")

# Split by daylight hours
lcz_anomaly(lcz_map, by = "daylight")

# Combine multiple splits
lcz_anomaly(lcz_map, by = c("daylight", "season"))

For further details, refer to the type in openair package.

Example workflows

Here are some practical examples of how to use the local functions:

Time series analysis

# Basic time series for a specific year
lcz_ts(
  lcz_map,
  var = "airT",
  station_id = "station",
  year = 2020
)

LCZ time series analysis showing temperature variations across different LCZ classes

Thermal anomaly mapping

# Map thermal anomalies for summer months
lcz_anomaly_map(
  lcz_map,
  var = "airT",
  station_id = "station",
  month = 6:8,
  year = 2020
)

Thermal anomaly map showing temperature differences across urban zones

Spatial interpolation

# Interpolate temperature for a specific date
lcz_interp_map(
  lcz_map,
  var = "airT",
  station_id = "station",
  year = 2020, month = 7, day = 15, hour = 12
)

Spatial interpolation of air temperature across the study area

---
